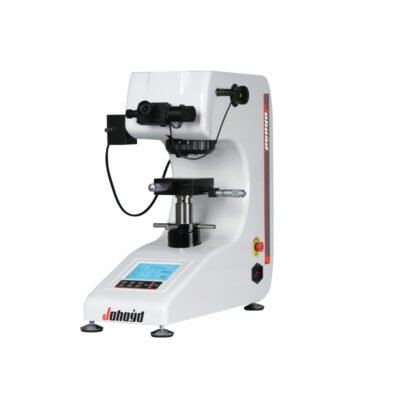

(HVS-1000Z large screen)Digital automatic turret type (side-shaking lifting system) Microhardness tester
The digital automatic turret type microhardness tester can meet the basic Vickers hardness test requirements. The upgraded digital display micrometer eyepiece can directly read the measured length, so as to obtain the measured value more quickly and accurately. The upgraded turret can automatically switch the eyepiece and the indenter to avoid damage to the instrument caused by human error, and also greatly improve efficiency.
The upgraded side-shaking lifting system has higher accuracy and more stable lifting platform during testing. There is no need to focus again after the test is completed. The large LCD screen is convenient for observation, and the test conditions and test process are intuitive and clear.
Main functions and features:
- The optical system designed by senior optical engineers not only has clear images, but can also be used as a simple microscope. The brightness is adjustable, the vision is comfortable, and long-term operation does not cause fatigue;
- The large LCD screen of the industrial display can display the test method, test force, measured indentation length, hardness value, converted hardness, test force holding time, number of measurements, and can enter the year, month, date, test results and data processing, etc.;
- The cast aluminum shell is formed in one step, the structure is stable and does not deform, the pure white car paint is high-grade, and the scratch resistance is strong. It is still bright as new after years of use;
- Our company has the ability to independently develop, design, produce and process, and the machine provides lifetime parts replacement and maintenance upgrade services;
- The HVS-1000Z model can realize: the hardness value can be directly confirmed by measuring the length.
- The HVS-1000Z model can realize: the position switching of observation-test-measurement is completed by the automatic turret.
- The side-shaking lifting system greatly improves the stability and accuracy, and there is no need to focus again after the test is completed.
Main uses and scope of application:
- Steel, non-ferrous metals, metal foils, hard alloys, metal sheets, microstructures
- Carburizing, nitriding and decarburizing layers, surface hardening layers, electroplating layers, coatings
- Glass, wafers, ceramic materials
Technical parameters:
| Parameter name | Parameter data |
| Microhardness scale | HV0.01,HV0.025,HV0.05,HV0.1,HV0.2,HV0.3,HV0.5,HV1 |
| Display | Holding time (seconds), hardness value |
| Test force (gf) | 10，25，50，100，200，300，500，1000 |
| Loading control | Automatic (load/hold/unload) |
| Test force holding time (s) | 5～60 |
| Test force selection | External force selection knob, the test force is automatically displayed on the LCD screen |
| Objective magnification | 10×，40× |
| Optical channel | Dual light channels (eyepiece and CCD camera channel) |
| Optical system | 1. Automatic digital encoder;
2. Total magnification (μm): 100× (observation), 400× (measurement); 3. Measuring range (μm): 200; 4. Resolution (μm): 0.01 |
| Hardness measurement range | (5-3000)HV |
| XY test table | Size (mm): 100×100
Travel range (mm): 25×25 Minimum reading (mm): 0.01 |
| (Digital display cross measurement platform is optional) | 110 |
| Maximum test piece height (mm) | 85 (Distance from the center line of the pressure head to the machine wall) |
| Maximum test piece width (mm) | Reserved built-in micro printer interface (RS232 serial interface), optional installation |
| Data output | AC220V/50HZ |
| Power supply voltage | 35 |
| Weight (kg) | (540×200×530)mm |
Standard Configuration
| 1. Main unit (one micro-Vickers indenter, one 10X and one 40X objective lens); | 2. Test bench, weights, microscope accessory box; |
| 3. Weights 6 pcs | 4. Weight rod 1 piece |
| 5. Cross workbench 1 pc | 6. Thin sheet clamping table 1 piece |
| 7. Flat clamping table 1 pc | 8. Wire clamping table 1 piece |
| 9. Level 1 pc | 10. Screwdriver 2 pieces |
| 11. Level adjustment screws 4 pcs | 12. External power cord 1 piece |
| 13. 10× digital micrometer eyepiece 1 pc | 14. Micro Vickers hardness block 2 pieces (one each for HV1 and HV0.2) |
| 15. Fuse (1 A) 2 pcs | 16. Product certificate 1 piece |
| 17. Product instruction manual 1 copy | 18. Dust cover 1 piece |
