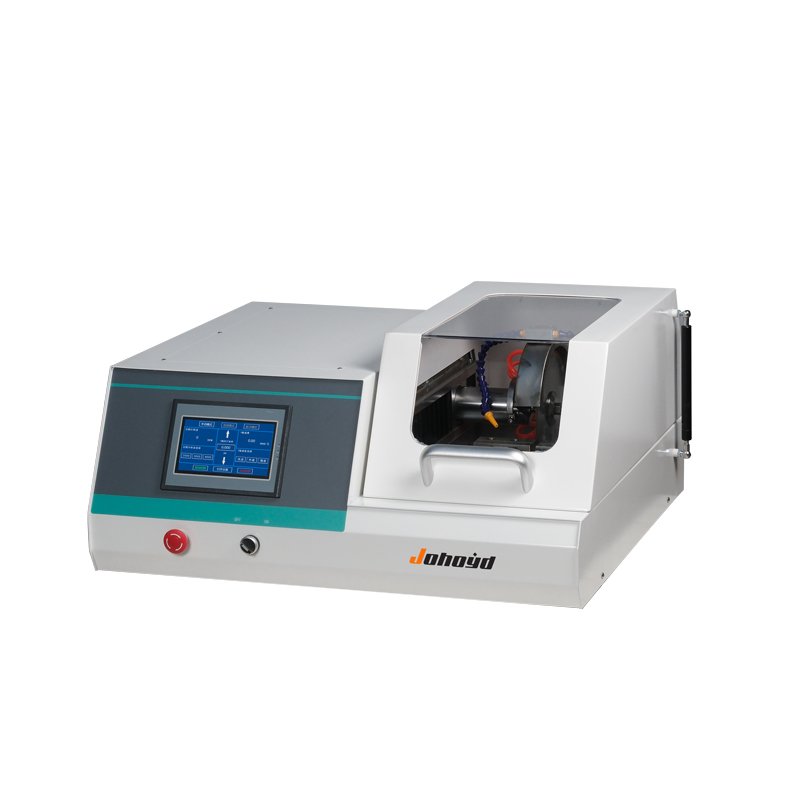

HQG-200D High Speed Precision Cutting Machine
Main Functions and Features: |
- Touch screen control and display is adopted, which is easy to operate, clear and intuitive.
- The visible transparent window design made of PC material makes the cutting process clear at a glance.
- The design of double layer protective knot and safety door switch makes the cutting process safer.
- It supports stepless speed regulation or three-gear speed regulation mode, making speed regulation more convenient.
- There are multiple cutting modes to choose from, which can meet different cutting needs of users.
- Multilayer filtration circulating water supply system to avoid sample surface heating during cutting and save water consumption.
- Equipped with a quick fixture, it is faster and more convenient to install the workpiece.
- The clamp and workbench are made of aluminum alloy and stainless steel, making them more durable.
- Can store more than 100 sets of cutting process parameters for quick invocation
- The emergency stop button can quickly and conveniently stop the operation, making it safer.
Technical parameter: |
| Input power supply | Single phase AC220V, 50Hz |
| Motor power | 1500W |
| Cutting ability | Φ 60mm |
| Travel Y-axis | 260mm |
| Cutting blade specification | Φ200×1.0×Φ32mm |
| Cutting platform size | 225x320mm |
| Cutting blade rotation speed | 500-5000rpm |
| Cutting jig | Quick Fixture |
| Lateral clamping width | 225mm |
| Longitudinal clamping length | 150mm |
| Cutting method | Y-axis automatic feeding (automatic homing after cutting),
manual feeding, pulse feeding (automatic homing after cutting) |
| Feed speed | 0-180mm/min(The adjustment step length is 0.01 mm) |
| Operation mode | Touch screen |
| Cooling method | water cooling |
| Equipment size | 830×810×410mm |
| Weight | 130KG |
