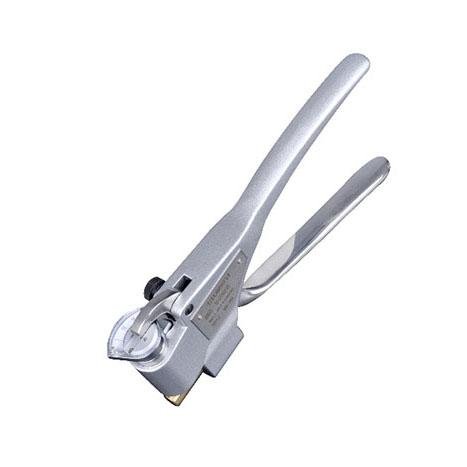

W-B92 Series Webster Hardness Tester
The W-B92 Webster hardness tester is a portable hardness tester operated with one hand. It can be used for quick on-site testing of the hardness of mild steel materials such as low carbon steel and stainless steel. The test is fast and simple, and only one card is needed. The hardness value can be read directly.
Main functions and features:
- The Webster hardness tester is suitable for testing profiles, pipes and plates, and is particularly suitable for rapid, non-destructive inspection of product hardness at production sites, sales sites or construction sites. ;
- The standard hardness block is tested by a standard hardness machine;
- The Webster hardness value can be converted into commonly used Vickers, Rockwell, Brinell hardness and tensile strength values;
Main uses and scope of application:
- Determine whether the workpiece has been heat treated and check the heat treatment effect
- Determine whether the workpiece is made of inappropriate alloys
- Test long, heavy workpieces or assemblies that are inconvenient to send to the laboratory
- Used for production inspection, acceptance inspection and quality supervision inspection
Main technical parameters:
- Measuring range: 0-20HW
- Accuracy: 0.5HW
- Measuring range: equivalent to Rockwell hardness 50~92HRB;
Vickers hardness 90~253HV;
Brinell hardness 85.5~241HB;
Tensile strength 285~810MPa/mm2;
(Data source: International standard ISO/8265-2003 (E))
| Sample size/diameter mm | Weight Kg | Total weightKg | Paking size mm |
| Plate with thickness ≤6, pipe with profile inner diameter ≥10 | 0.5 | 1.1 | 280×230×80 |
Standard Configuration:
| Host | 1 set | Standard hardness block | 1 piece |
| Spare pressure pin | 1 piece | Calibration wrench | 1 piece |
| Small screwdriver | 1 | Instrument case | 1 piece |
Optional accessories for Webster hardness tester:
- Indenter
- Standard hardness block
