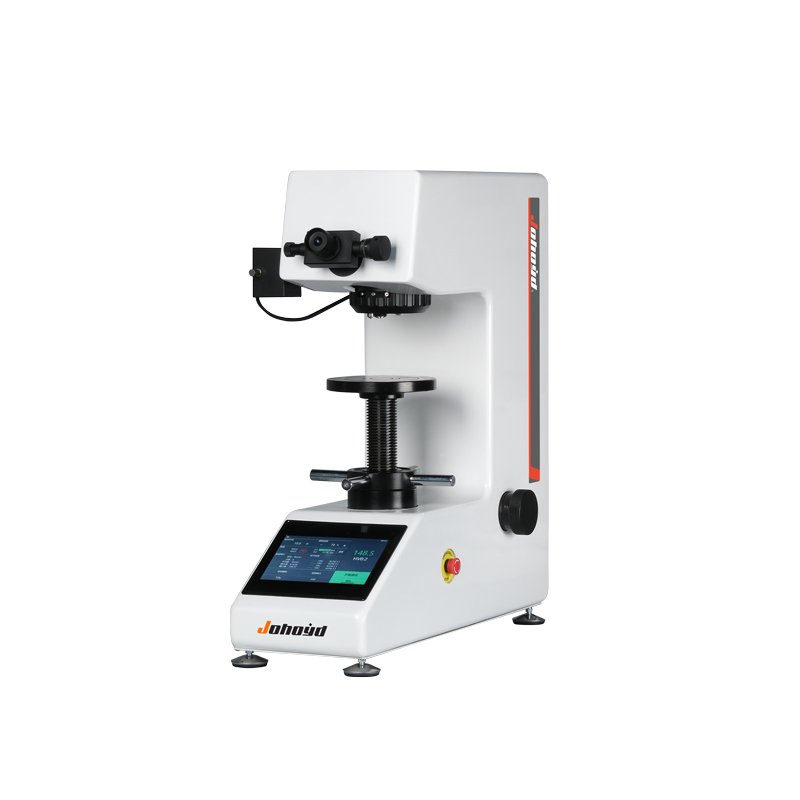

(HVT-50)Durómetro Vickers automático de torreta con pantalla táctil
The automatic turret type Vickers hardness tester can meet the basic Vickers hardness tester test requirements. The upgraded turret can automatically switch the eyepiece and the indenter to avoid damage to the instrument caused by manual errors. At the same time, it greatly improves the efficiency. -Inch LCD touch screen, can provide more measurement data, control is more comprehensive and accurate.
Funciones y características principales:
- El sistema óptico diseñado por ingenieros ópticos superiores no sólo ofrece imágenes nítidas, sino que también puede utilizarse como un microscopio sencillo, con brillo ajustable, visión cómoda y no es fácil que se fatigue tras un funcionamiento prolongado;
- The 7-inch touch screen can display the test method, test force, upper and lower limits of hardness value, measured indentation length, hardness value, test force retention time, measurement times and can enter year, month, date, test results and data processing Wait;
- The system comes with a calibration function, and each test force can be manually adjusted to input the error calibration instrument;
- The adjustable range of optical system brightness: 0-100;
- It can store up to 100 sets of test data, and display the average value and test times data on the main interface;
- The test force unit can be manually selected for mutual conversion, the conversion unit is: (Kgf, N)
- The main interface can display 4 conversion scales at the same time, and can switch between national standards, American standards and international standards. A total of 18 measurement scales can be converted: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK , HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HV, HK, HBW;
- Both objective lenses can directly measure the hardness,
- The upper and lower limit measurement range can be set and displayed on the main measurement interface;
- Test data can be directly exported via USB;
- The measuring scale can be converted into HK Knoop hardness;
- The operating system can be converted between Chinese and English;
- Optional built-in printer, test data can also be output to U disk via USB for storage and analysis;
- HVT-5Z model can realize: the position switch of observation-test-measurement is completed by automatic turret
- The cast aluminum shell has a stable and non-deformed structure once formed, and the pure white car paint has a high grade, strong scratch resistance, and it is still bright as new after many years of use;
- Our company has the ability to develop, design, produce and process by ourselves, and provide parts replacement and maintenance upgrade services for our machines for life
Ámbito de aplicación principal:
- Steel, non-ferrous metals, metal foil, cemented carbide, metal sheet, microstructure, carbonization;
- Carburizing, nitriding and decarburizing layer, surface hardening layer, electroplating layer, coating, heat treatment;
- Glass, wafers, ceramic materials;
Parámetros técnicos:
| nombre del parámetro | Datos de los parámetros |
| Escala de dureza Vickers | HV1,HV5,HV10,HV20,HV30,HV50 |
| mostrar | Valor de dureza de 5 dígitos, longitud diagonal de 4 dígitos (D1, D2),
Tiempo de espera, número de pruebas, media, desviación típica, rendimiento |
| Fuerza de ensayo (Kgf) | 1.0Kgf(9.8N)、5.0Kgf(49.0N)、10Kgf(98.0N)、
20Kgf(196N)、30Kgf(294N)、50Kgf(490N) |
| Control de carga | Automático (carga/retención/desinstalación) |
| Tiempo de retención de la fuerza de ensayo | 1～99 |
| Canal óptico | Canales de luz dobles (oculares y canales de cámara CCD) |
| Sistema óptico | Objectives: 10×, 20×(Optional 40X)
Aumento del ocular: 10× Aumento total (μm): 100×, 200× Rango de medición (μm): 400 Resolution (μm): 0.5 |
| Rango de medición de la dureza | (5-3000)HV |
| Banco de pruebas XY (opcional) | Tamaño (mm): 100×100
Rango de recorrido (mm): 25×25 Lectura mínima (mm): 0.01 |
| Altura máxima de la probeta (mm) | 165 |
| Anchura máxima de la probeta (mm) | 130 (distancia de la línea central del penetrador a la pared) |
| Data output (optional) | Built-in printer, test data can also be output to U disk via USB for storage and analysis |
| tensión | AC220V/50HZ |
| Tamaño total (mm) | 585×200×630 |
| Peso (kg) | 42 |
Configuración estándar
| Ordenador anfitrión | 1 |
| peso | 3 |
| Bancos de pruebas en “V” grandes y medianos | 1 por unidad |
| Tornillo de ajuste horizontal | 4 |
| Cable de alimentación | 1 |
| Ocular de microscopio digital 10X | 1 |
| Bloque de dureza Vickers | 2 |
| Fusible de repuesto 2A | 2 |
| Certificado del producto | 1 |
| Manual de instrucciones | 1 |
Remarks: Optional hardness tester measurement software to eliminate human error, computer operation, improve efficiency, and more precise accuracy.
Optional built-in printer, one-key printing of measurement data
